Peplink Antenna MAX

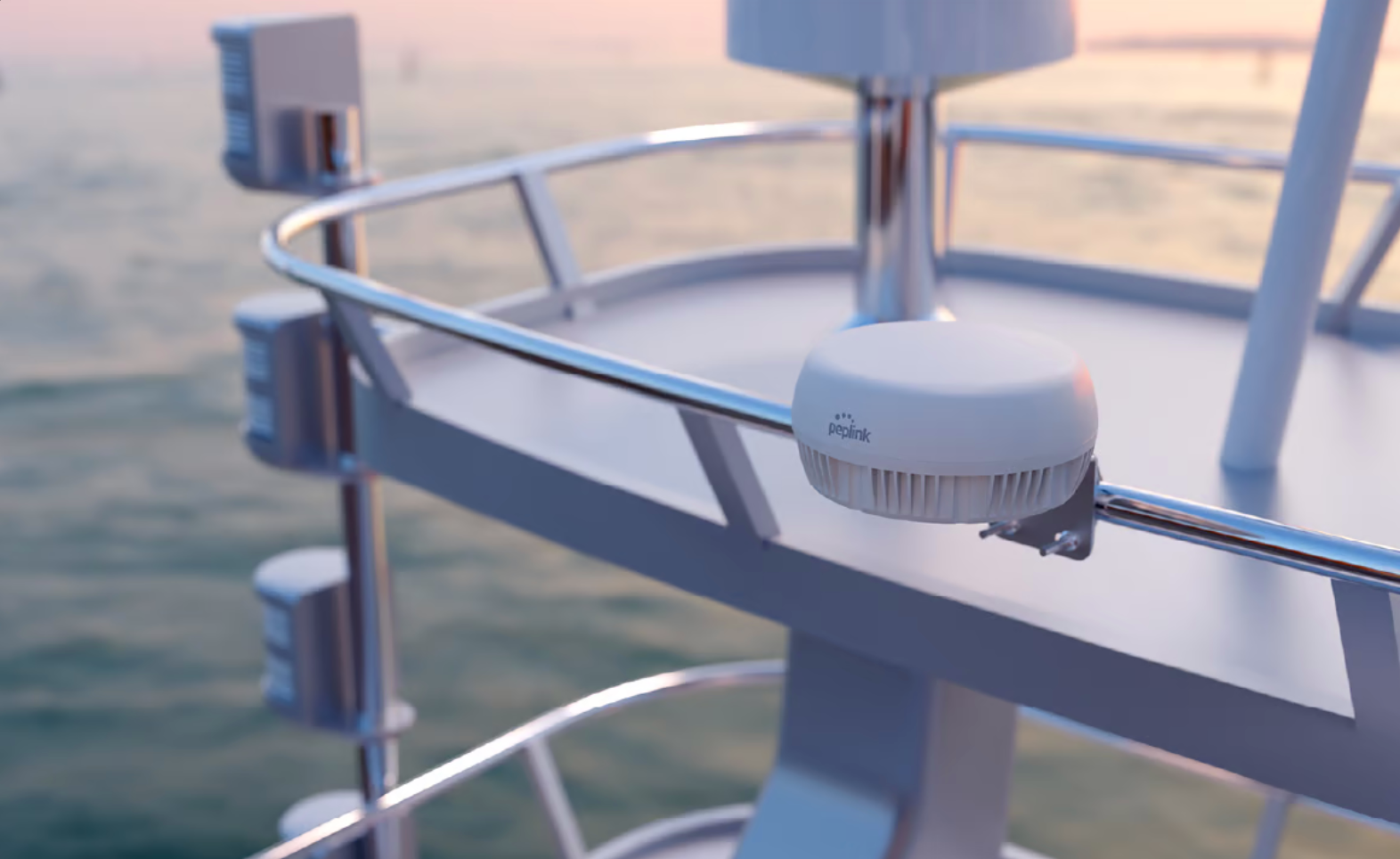

The Peplink MAX Antenna is a powerful, versatile antenna for stable mobile internet connections. It supports 5G, LTE , and Wi-Fi connections and provides reliable signal coverage for Peplink routers in vehicles, on construction sites, and at remote locations. Its robust construction makes it ideal for use in demanding environments.
This fits perfectly:

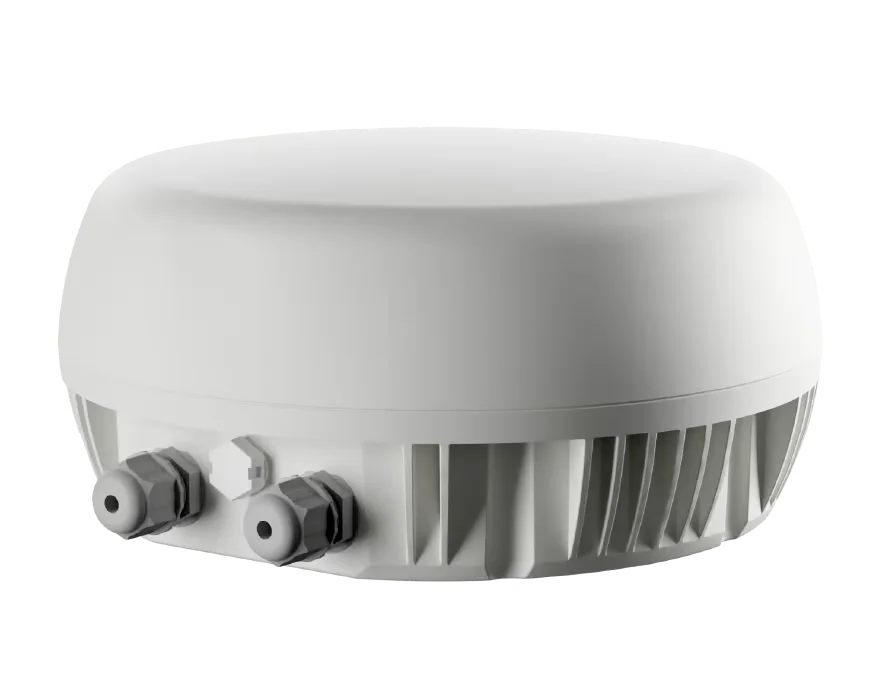

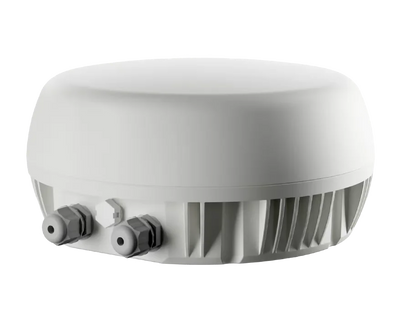

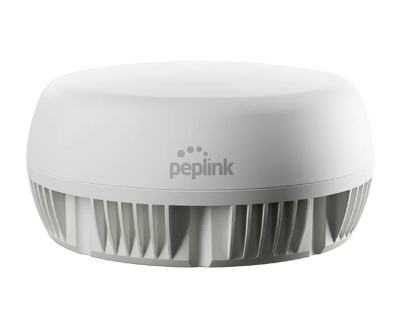

Peplink Antenna MAX
MAXIMUM 5G PERFORMANCE
Increase the range and signal strength of your cellular and 5G routers with the powerful outdoor antenna Antenna Max. Ideal for businesses and government agencies.
Product details
At a glance
Product name:
- Peplink Antenna MAX
Manufacturer:
- Peplink
Product series:
- MAX Series
Packaging dimensions
- 351 x 295 x 146 mm
Purpose of use:
The Peplink Antenna MAX provides a reliable 4G/5G connection for mobile applications, IoT devices, remote locations, and emergency connections. Ideal for vehicles, boats, and industrial applications, it features a rugged, weatherproof construction and GPS tracking.
Areas of application
The Peplink Antenna MAX is suitable for:
- Mobile applications (vehicles, boats)
- IoT devices (remote locations)
- Remote locations (stable internet connection)
- Emergency communication (backup connection)
- Industrial applications (outdoor & robust)
- GPS tracking (location determination)
Technical data
Technical data sheet
(EN - english)
Scope of delivery
1x Antenna MAX
Double-sided 3M adhesive pad
3x Cable Gland
1x L-mount set
2x Hole Plug
FAQs
What is the Antenna MAX?

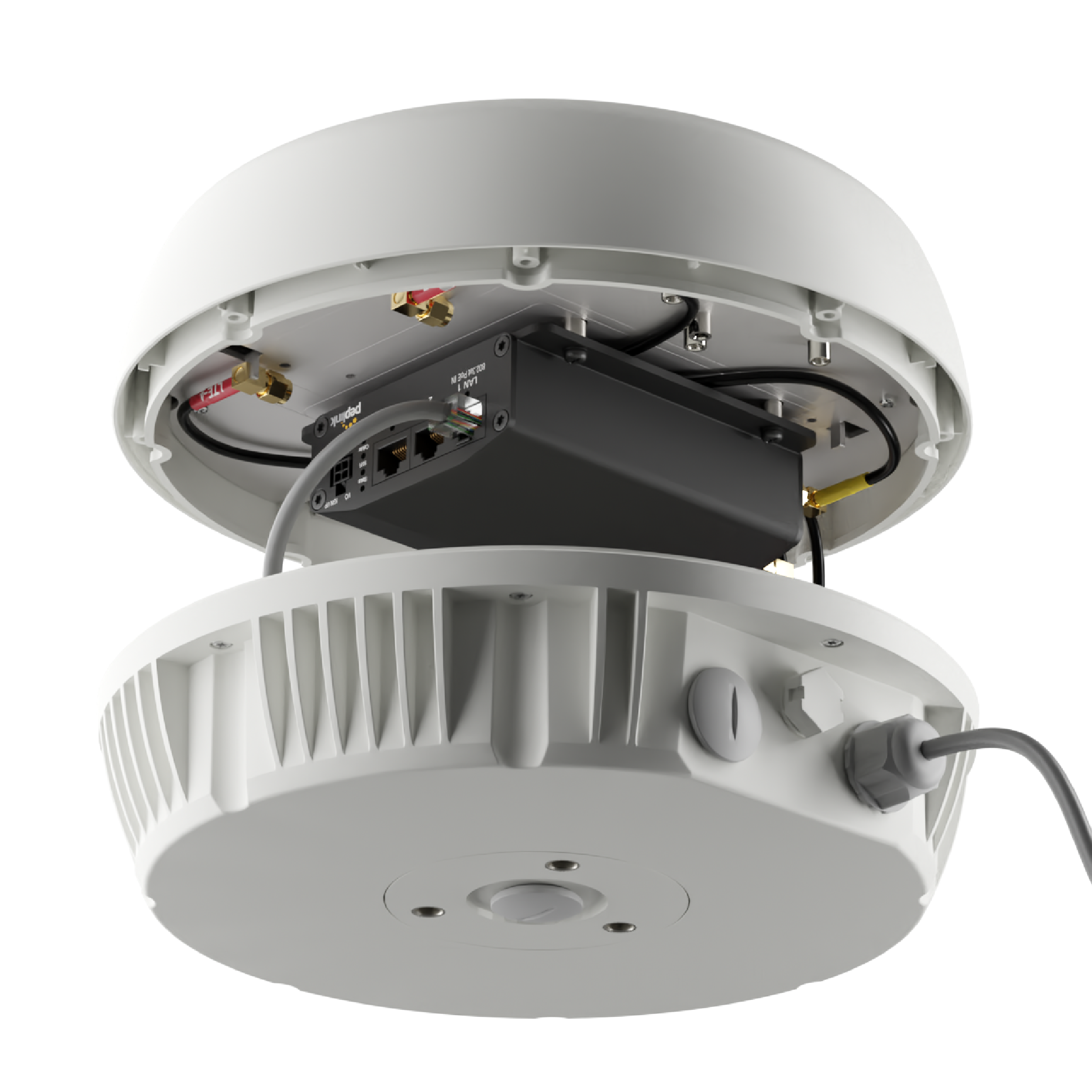

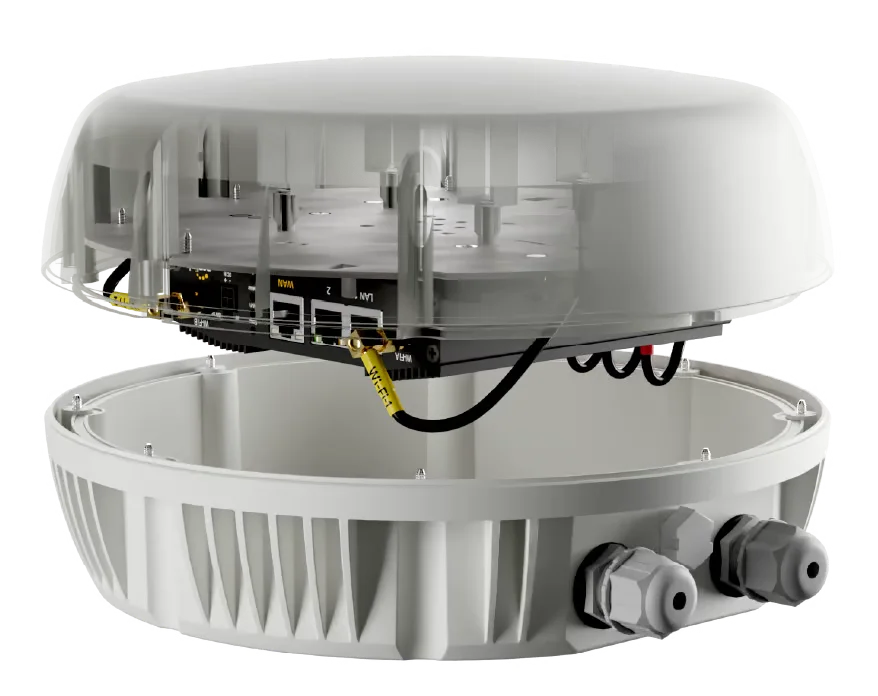

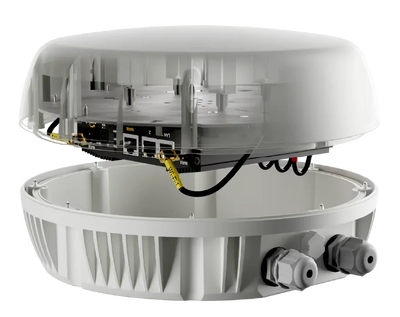

The Antenna MAX is an antenna that offers additional space for a router inside its housing. The router is protected from water and dust thanks to its IP67-certified housing. The antenna integrates four 5G/LTE, two Wi-Fi, and GPS antennas. Short cable lengths minimize cable loss and ensure optimal performance.
Which devices are compatible with the Antenna MAX?
Compatible devices are:
- BR1 Mini
- BR1 Mini Core
- BR1 Mini 5G
- BR1 Mini M2M
- Transit Duo Pro
- BR1 Pro 5G
- BR1 Pro (CAT-20)
- POTS adapter
For devices such as the Transit Duo Pro, BR1 Pro 5G and BR1 Pro (CAT-20) that do not support PoE In, a PoE splitter is required.
Why should I choose Antenna MAX over traditional antenna solutions?
The primary purpose of the Antenna MAX is to minimize antenna cable loss in the overall network design. By housing the router directly within the antenna housing, maximum signal gain is maintained. The Antenna MAX connects to the rest of the network via an Ethernet cable and achieves a gain of up to 7.4 dB by removing RF cables from the setup.
